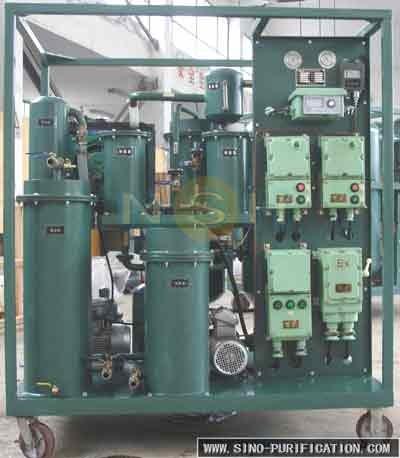

21kw With Water Content Tester Degassing Vacuum Lubricating Oil Purifier
Company Profile:
Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992.
NSH regards technical innovation and satisfying service as its philosophy. Taking advantage of Human resources capital and absorbing domestic and foreign advanced purification technology, NSH is committed in making purification equipments. NSH passed the approval of the ISO 9001 quality system and become the main manufacture base of purification machine in China
NSH Oil purification equipment series are extensively used in the fields of electric power, petroleum, natural gas, mechanical manufacture, steel, metallurgy, railway, aviation etc. which consume lubrication oil. It's the principal products covering more than 100 kinds of products in 7 series and can meet different needs of customers. For special demands of customers, we offer particular solutions. NSH products are not only able to low customers' cost and security risk effectively, but also solve the problem of which the waste oil contaminates environment.
Vacuum Lubricating Oil Purifier Features:
- Hole used -friendly design.
- Four main security and protecting system to ensure safe operation.
- Adopting delamination gradual-close filtering technology.
- Online working.
- High efficiency, low noise
- Environmentally friendly design.
- Low maintenance cost
FAQ:
1.1.Are you a trading company or manufacturer?
Manufacturer.
2.Do you accept custom service?
Yes!
3.Do you offer free technical training?
Yes!
4.What's your Delivery Time?
20~30 days.
5.What payment terms do you accept?
T/T,Visa,L/C,West Union,PayPal.
6.Do you accept OEM?
Yes, we can manufacture according to clients requirement.
7. What is your packing?
Strong wooden cases, suitable for long distance sea freight transportation and changing climate, good resistance to moisture and shocks.
Vacuum Lubricating Oil Purifier Technical Parameters:
| Parameter | Value |
| LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200 |
| Capacity, liters/hour | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 |
| Heating Power, kW | 15 | 18 | 30 | 45 | 90 | 120 | 180 |
| Total Power, kW | 17 | 21 | 35 | 50 | 96 | 126 | 186 |
| Power supply | Fully Customizable |
| Inlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 |
| Outlet Diameter, mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 |
Dimensions
(without trailer) | length, mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
| width, mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 |
| height, mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 |
| Weight(without trailer), kg | 600 | 800 | 900 | 1150 | 1500 | 1700 | 2400 |
| Processed Oil Spec | Water Content, ppm | ≤100 |
| Dielectric Strength, Kv | ≤6 |
| Filtration Fineness, um | ≤5( or 1-5 as needed ) |
Corollary Equipment-VR Vacuum Pump Set
SINO-NSH-VR is units create vacuum in transformer and other equipment with double-stage vacuum system.
| Parameter | Value |
| VR-30 | VR-70 | VR-150 | VR-300 | VR-600 | VR-900 |
| Capacity, liters/hour | 100 | 250 | 500 | 1000 | 2000 | 3000 |
| Total Power, kW | 3 | 3 | 5 | 7 | 8 | 13 |
| Power supply | Fully Customizable | |
| Maximum Vacuum Range,Pa | 0.06 |
| Outlet Diameter, mm | 32 | 32 | 40 | 40 | 50 | 65 |
| Dimensions | length, mm | 900 | 550 | 1000 | 1200 | 1500 | 1950 |
| width, mm | 800 | 900 | 800 | 800 | 1000 | 1800 |
| height, mm | 1200 | 800 | 1200 | 1200 | 1200 | 1300 |
| Weight(without trailer), kg | 450 | 550 | 600 | 900 | 950 | 1950 |
PS: we accept customization, welcome to inquiry!!
