VF Series vacuum transformer oil filtration machine NSH Transformer Oil Purifier
Description:
Sino-NSH-VF oil purifier is mainly used to improve the properties of insulating oils in electric power transformers and other oil filled electrical equipment(dielectric oils, transformer oil, cable oil, socket charger and medium voltage circuit breaker oil etc). It can remove dissolved and free water, dissolved gas and particulate impurities effectively so as to increase special indexes of insulation oil.
Sino-NSH-VF oil purifier combines vacuum flashing evaporation technology and delaminating gradual-close filter technology to reach best performance of oil purification. Meanwhile, by integrating thermal and vacuum, the breakdown voltage is improved, which can be increased from 20kV to over 65kV, the water content can be reduce to less than 7ppm, and the impurities can be removed to 1-5 um as your requirements.
Sino-NSH-VF oil purifier maintains an optimized structure and safe controls so as to meet comprehensive requirement of transformer manufacturers and service companies.
Feature:
1. To remove free, soluble water, carbon, free and dissolved gases and particulate matters from insulating oil effectively and rapidly.
2. Enhance the value of breakdown voltage greatly.
3. Easy handling and maintenance.
4. Inject oil into the transformers
5. Online work
6. Lower maintenance and replacement expenses
7. High efficiency and effectiveness
8. Available in mobile or stationary options.
9. Small size, light weight, low noise
10.Various sizes and configurations (alloy shield) available
Available type:
Mobile mounted on 4 wheels base frame and covered steel frame

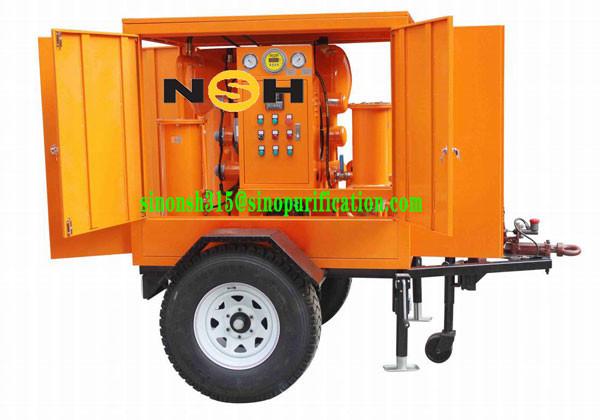

Single/Double axle trailer: mounted on chassis with pneumatic tyres,covered steel shield. Air brake system, hand brake, rear lights, tow-eye etc.
| Item | Unit | VF-20 |
| Flow Rate | L/H | 1200 |
| Vacuum Range | Mpa | -0.065 ~ -0.096 |
| Working Pressure | Mpa | ≤ 0.3 |
| Max Vacuum Range | Pa | ≤ 100 |
| Temperature Range | ºC | 45 ~ 80 |
| Breakdown Voltage | kV | ≥ 65 |
| Impurity Size | μ m | ≤ 3 |
| Water Content | PPM | ≤ 7 |
| Gas Content | % | ≤ 0.1 |
| Power Supply | V | 380V/3P/50Hz(or as needed) |
| Working Noise | dB | ≤ 70 |
| Heating Power | Kw | 30 |
| Total Power | Kw | 33 |
| Pipeline Diameter | mm | DN25 |
| Net Weight | Kg | 330(without trailer) |
| Size | length | mm | 1400 |
| width | mm | 900 |
| height | mm | 1300 |
-All power calculations are for 380 Volts, 3 Phase, 50Hz.
-The power supply is customizable accords to your practical.
-Please consult with sales team for more
